Output Capacity：3-4T/H
Power：250+3+0.55+1.5+3
Number of Rollers：2 pcs
Pellet Diameter：6, 8,10
Weigh of Machine(T)：14T
Dimension(MM)：2650×1850×2100
Whole set include: Fan Blower 2.2kw,Bag dust collector, Automatic roller and gear lubrication system and Electric control Box
3 YEARS WARRANTY FOR GEAR REDUCER, 18 MONTH WARRANTY FOR MOTOR
Gear reducer three years warranty policy:
1. The first year reducer gear teeth, bearing damage, free replacement gearbox
2. second year reducer gear teeth, bearing damage, free replacement accessories
3. in the third year reducer gear teeth, bearing damage, only accessories cost replacement maintenance.
Electric Motor 18 months warranty policy:
Customers within 18 months after receiving motor:
1. abnormal sound, free replacement of new motor
2. too high temperature, free replacement of new motor
3. low current phenomenon; free replacement of new motor
Machine Induction

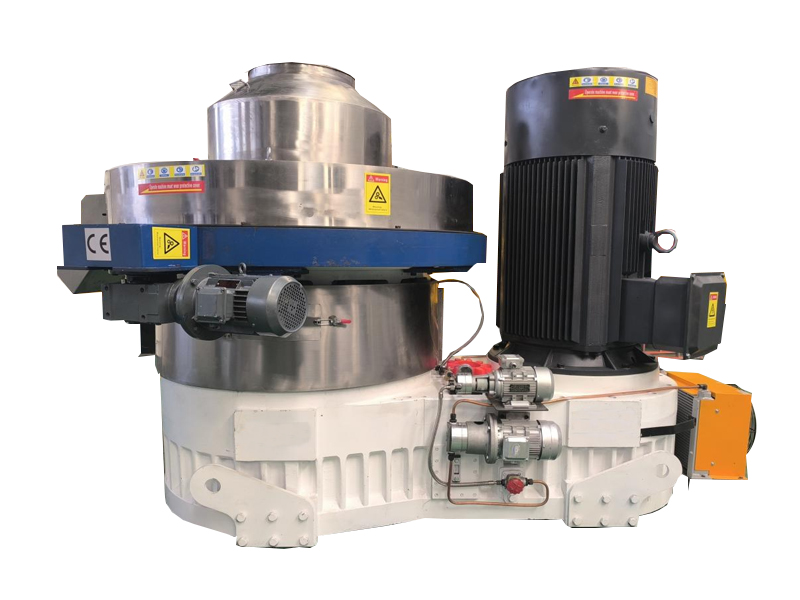

Motor gear direct connection type, motor connected with gear reducer shaft through tooth coupling, after 90° changing-direction, horizontal motor drive the vertical spindle, then spindle drive roller assembly press the inner appearance of ring die to pelletizing.
Raw Material
The raw material to make pellets can be wood branch, stem, wood bark and other wood waste; rice husk, sunflower husk, peanut shell and fruit shell; a variety of crop stalks; Rubber, cement, ash and other chemical materials, such like low adhesion rate, hard or soft materials.
Application
XGJ850 250kw 3-4T/H wood pellet mill can be used in wood processing plants, fuel plants, fertilizer plants, chemical plants etc. Since it requires less investment and yield quicker result and that no risk, this series biomass pellet mill is an ideal dense compression molding equipment.
Machine Details Pic
Spare Parts
220KW WOOD PELLET MACHINE
GREASE PUMP
DUST COLLECTOR
ELECTRIC PANEL
20’OT/6PKG/13000KGS/20CBM
Loading equipment:8ton forklift,3 loading staffs
90kw XGJ560 Wood Pellet MachineXGJ560 90KW Biomass Pellet Machine
Output Capacity：1.2-1.5T/H
Power：90+1.5+0.37+0.37+3
Number of Rollers：2 pcs
Pellet Diameter：6, 8,10,12
Weigh of Machine(KG)：4600kg
Dimension(MM)：2100*1700*1600
Whole set include: Fan Blower 2.2kw,Bag dust collector, Automatic roller and gear lubrication system and Electric control Box
3 YEARS WARRANTY FOR GEAR BOX,
18 MONTH WARRANTY FOR MOTOR- 110kw XGJ560 Wood Pellet MachineXGJ560 110KW Biomass Pellet Machine
Output Capacity：1.4-1.7t/h
Power：110+1.5+0.37+0.37+3
Number of Rollers：2 pcs
Pellet Diameter：6, 8,10,12
Weigh of Machine(KG)：4700kg
Dimension(MM)：2100*1700*1600
Whole set include: Fan Blower 2.2kw,Bag dust collector, Automatic roller and gear lubrication system and Electric control Box
3 YEARS WARRANTY FOR GEAR BOX,
18 MONTH WARRANTY FOR MOTOR - 132kw XGJ560 Wood Pellet MachineXGJ560 132KW Biomass Wood Pellet Machine
Output Capacity：1.7-2.5T/H
Power：132+1.5+0.37+1.5+3
Number of Rollers：2 pcs
Pellet Diameter：6, 8,10,12
Weigh of Machine(KG)：4800kg
Dimension(MM)：2100*1700*1600
Whole set include: Fan Blower 2.2kw,Bag dust collector, Automatic roller and gear lubrication system and Electric control Box
3 YEARS WARRANTY FOR GEAR BOX,
18 MONTH WARRANTY FOR MOTOR - 160kw XGJ700 Wood Pellet MachineXGJ700 160KW Biomass Pellet Machine
Output Capacity：2.5-3T/H
Power：160+1.5+0.37+1.5+3
Number of Rollers：2 pcs
Pellet Diameter：6, 8,10
Weigh of Machine(KG)：5200kg
Dimension(MM)：2200*1700*1650
Whole set include: Fan Blower 2.2kw,Bag dust collector, Automatic roller and gear lubrication system and Electric control Box
3 YEARS WARRANTY FOR GEAR BOX,
18 MONTH WARRANTY FOR MOTOR - 220kw XGJ850 Wood Pellet MachineXGJ850 220KW Biomass Pellet Machine
Output Capacity：2.5-3.5T/H
Power：220+3+0.55+1.5+3
Number of Rollers：2 pcs
Pellet Diameter：6, 8,10
Weigh of Machine(T)：13.5T
Dimension(MM)：2650×1850×2100
Whole set include: Fan Blower 2.2kw,Bag dust collector, Automatic roller and gear lubrication system and Electric control Box
3 YEARS WARRANTY FOR GEAR BOX,
18 MONTH WARRANTY FOR MOTOR
